Festo
159660

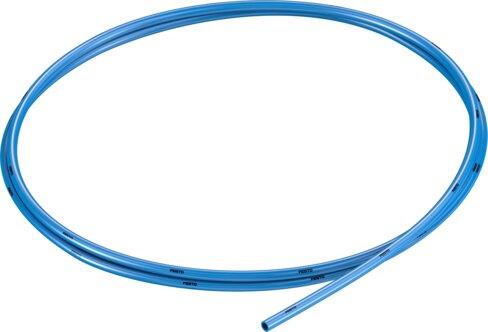

Plastic tubing PUN-3X0,5-BL
The Festo 159660 is a blue industrial plastic tubing manufactured from ester-based TPE-U with an outside diameter of 3 mm and an inside diameter of 2.1 mm. Suitable for energy chains, this component operates within a temperature-dependent pressure range of -0.95 bar to 10 bar and an ambient temperature range of -35 °C to 60 °C. It features a minimum bending radius of 9 mm, a Shore hardness of D 52 +/-3, and is certified by TÜV under authority B 013277 0527 00 while utilizing compressed air as an operating medium according to ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 159660
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 159660.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 3 mm
- Bending radius relevant for ow rate
- 12 mm
- Inside diameter
- 2.1 mm
- Min. bending radius
- 9 mm
- Application note
- TPE-U, ester-based | The plastic tubing can only be installed in contact with cables if the | sheathing is free from phosphoric acid esters. Failure to observe this can | result in damage to the plastic tubing.
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.0044 kg/m
- Pneumatic connection
- For plug connection outside diameter 3 mm | For barbed tting, inside diameter 2 mm
- Color
- Blue
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
