Festo
159670

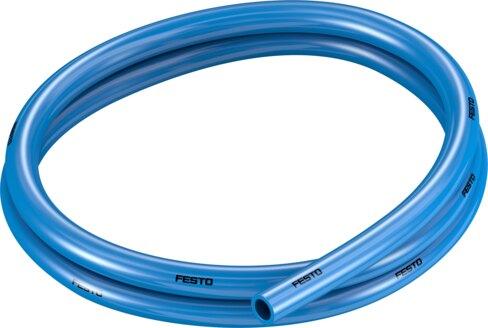

Plastic tubing PUN-12X2-BL
The Festo 159670 is a blue TPE-U ester-based industrial component featuring a 12 mm outside diameter, an 8 mm inside diameter, and a D 52 +/-3 Shore hardness designed with a 33 mm minimum bending radius and a 62 mm bending radius relevant for flow rate. Certified by TÜV under certificate B 013277 0527 00, this RoHS-compliant tubing operates across a temperature range of -35 °C to 60 °C with a pneumatic connection for 12 mm outside diameter plug connections and a weight of 0.0767 kg/m. It is suitable for energy chains with an operating pressure of -0.095 MPa to 0.7 MPa across the entire temperature range, and -0.095 MPa to 1 MPa under temperature-dependent conditions, utilizing compressed air as per ISO 8573-1:2010 [7:-:-] while requiring that cable sheathing in contact with the tubing remains free from phosphoric acid esters. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 159670
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 159670.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 12 mm
- Bending radius relevant for ow rate
- 62 mm
- Inside diameter
- 8 mm
- Min. bending radius
- 33 mm
- Application note
- TPE-U, ester-based | The plastic tubing can only be installed in contact with cables if the | sheathing is free from phosphoric acid esters. Failure to observe this can | result in damage to the plastic tubing.
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.0767 kg/m
- Pneumatic connection
- For plug connection outside diameter 12 mm
- Color
- Blue
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
