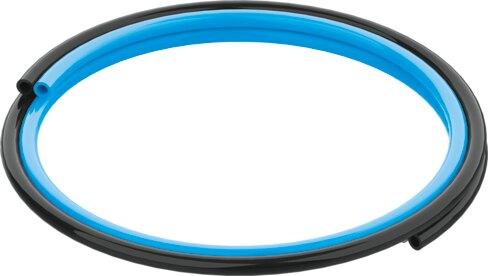

Reference imageConfirm configuration by manufacturer part number.
Festo
159674
DUO tubing PUN-4X0,75-DUO-BS
Engineered from ester-based TPE-U by Festo, this 4 mm outside diameter and 2.6 mm inside diameter industrial pneumatic tubing supports compressed air operating pressures from -0.95 bar to 10 bar depending on temperature. The blue/black component features a 17 mm bending radius relevant for flow rate, an 8 mm minimum bending radius, and is certified by TÜV under certificate B 013277 0527 00 while remaining suitable for energy chains. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 159674
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 159674.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 4 mm
- Bending radius relevant for ow rate
- 17 mm
- Inside diameter
- 2.6 mm
- Min. bending radius
- 8 mm
- Application note
- TPE-U, ester-based | The plastic tubing can only be installed in contact with cables if the | sheathing is free from phosphoric acid esters. Failure to observe this can | result in damage to the plastic tubing.
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.0178 kg/m
- Pneumatic connection
- For plug connection outside diameter 4 mm | For barbed tting, inside diameter 3 mm, with union nut | For barbed tting, inside diameter 3 mm
- Color
- Blue/black
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
