Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

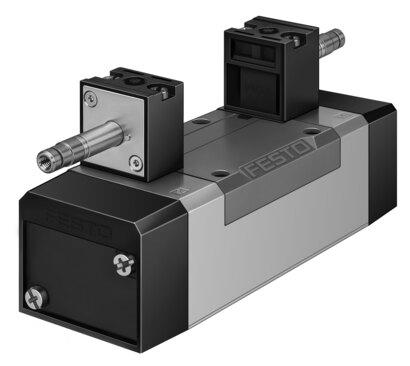

Reference imageConfirm configuration by manufacturer part number.
Festo
159680
Air solenoid valve MN1H-5/3G-D-1-S-C
The Festo part number 159680 is an electrical 5/3-way closed industrial component featuring a piston gate valve structural design with a soft sealing principle and an 8 mm nominal width. Operating at pressures from -0.9 bar to 16 bar, this unit delivers a normal nominal flow rate of 1200 l/min through an ISO 5599-1 size 1 sub-base or G1/4 pneumatic working port. Certified by DNV under certificate DNV-TAA000032X with an IP65 degree of protection, it includes a mechanical spring reset method, adjustable exhaust air function, and both detenting and non-detenting manual overrides. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this 42 mm wide component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 159680
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 159680.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Width
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1 | G1/4
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X
- Degree of protection
- IP65
- Nominal width
- 8 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory | Non-detenting
- ISO code
- 169
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- Yes
- Switching time off
- 44 ms
- On switching time
- 20 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 159680. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
