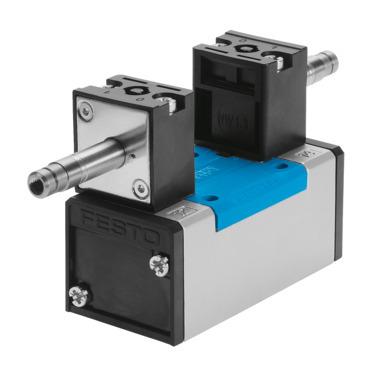

Reference imageConfirm configuration by manufacturer part number.
Festo
159690
Air solenoid valve JMN1H-5/2-D-1-C
The Festo 159690 is an electrical 5/2-way bistable industrial component featuring a piston gate valve structural design with an 8 mm nominal width and 42 mm width. It delivers a normal nominal flow rate of 1200 l/min at an operating pressure range of 0.2 MPa to 1 MPa and includes an ISO 5599-1 sub-base or G1/4 pneumatic working port, adjustable exhaust air function, and IP65 protection. Certified by c UL us - recognized (OL) and DNV-TAA000032X with soft sealing, this unit supports any mounting position and manual override via detenting accessory or non-detenting actuation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 159690
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 159690.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1 | G1/4
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65
- Nominal width
- 8 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory | Non-detenting
- ISO code
- 155
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Suitability for vacuum
- No
- Changeover time
- 18 ms
- Max. positive test pulse with 0 signal
- 3700 µs
- Max. negative test pulse on 1 signal
- 4600 µs
