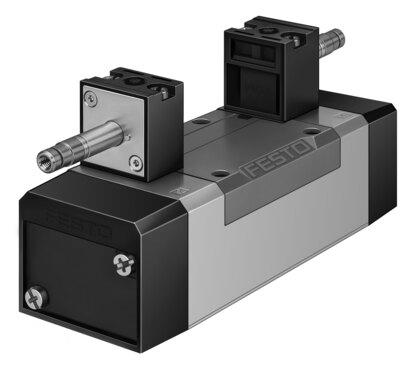

Reference imageConfirm configuration by manufacturer part number.
Festo
159704
Air solenoid valve MN1H-5/3G-D-3-S-C
The Festo 159704 is an electrical piston gate valve featuring a 5/3 closed function, a width of 65 mm, and a normal nominal flow rate of 4100 l/min normalized to DIN 1343. Operating within a pressure range of -0.09 MPa to 1.6 MPa, this ISO 5599-1 compliant component utilizes a soft sealing principle, a mechanical spring reset method, and offers an IP65 degree of protection. It incorporates a G1/2 pneumatic working port, an exhaust air function with flow control, and operates at a nominal width of 14.5 mm via a separately ordered solenoid coil. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 159704
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 159704.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3, closed
- Actuation type
- Electrical
- Width
- 65 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4100 l/min
- Pneumatic working port
- Sub-base, size 3 as per ISO 5599-1 | G1/2
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X
- Degree of protection
- IP65
- Nominal width
- 14.5 mm
- Width dimension
- 71 mm
- Exhaust air function
- With ow control option
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory | Non-detenting
- ISO code
- 369
- Type of control
- Pilot-controlled
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- yes
- Switching time off
- 82 ms
- On switching time
- 33 ms
