Festo
159707

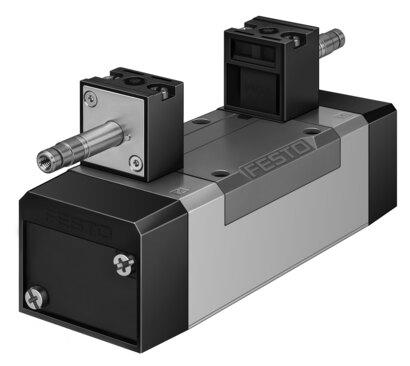

Air solenoid valve MN1H-5/3E-D-3-C
The Festo part number 159707 is an electrical-actuated 5/3 exhausted piston gate valve featuring a soft sealing principle, a 65 mm width, and a normal nominal flow rate of 4600 l/min normalized to DIN 1343. Built to ISO 5599-1 standards with a size 3 sub-base and G1/2 pneumatic working port, this IP65-rated component operates at pressures from 0.3 MPa to 1 MPa utilizing a mechanical spring reset and a 14.5 mm nominal width. It includes a flow control option for exhaust air, non-detenting or accessory-detenting manual override, and carries c UL us recognized and DNV maritime certifications. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 159707
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 159707.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3, exhausted
- Actuation type
- Electrical
- Width
- 65 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4600 l/min
- Pneumatic working port
- Sub-base, size 3 as per ISO 5599-1 | G1/2
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - Recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65
- Nominal width
- 14.5 mm
- Width dimension
- 71 mm
- Exhaust air function
- With ow control option
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory | Non-detenting
- ISO code
- 357
- Type of control
- Pilot-controlled
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Overlap
- Suitability for vacuum
- no
- Switching time off
- 84 ms
- On switching time
- 36 ms
