Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

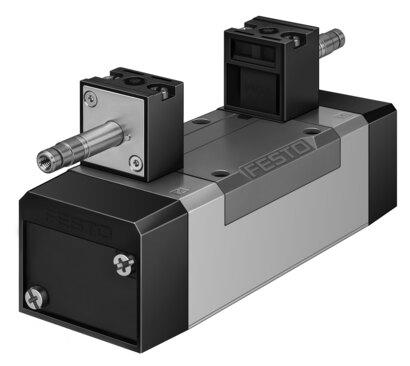

Reference imageConfirm configuration by manufacturer part number.
Festo
159709
Air solenoid valve MN1H-5/3B-D-3-C
The Festo 159709 is an electrically actuated 5/3 pressurized industrial component featuring a piston gate valve structural design with a soft sealing principle and mechanical spring reset method. Conforming to ISO 5599-1 standards, this 65 mm wide unit delivers a normal nominal flow rate of 4000 l/min through a nominal width of 14.5 mm, operating within a pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar) and offering an IP65 degree of protection. It includes sub-base size 3 pneumatic working ports per ISO 5599-1 with G1/2 connections, flow control exhaust air functionality, detenting or non-detenting manual override accessories, and c UL us (OL) plus DNV-TAA000032X certifications. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 159709
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 159709.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3, pressurized
- Actuation type
- Electrical
- Width
- 65 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4000 l/min
- Pneumatic working port
- Sub-base, size 3 as per ISO 5599-1 | G1/2
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - Recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65
- Nominal width
- 14.5 mm
- Width dimension
- 71 mm
- Exhaust air function
- With ow control option
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory | Non-detenting
- ISO code
- 358
- Type of control
- Pilot-controlled
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Overlap
- Suitability for vacuum
- no
- Switching time off
- 78 ms
- On switching time
- 35 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 159709. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
