Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

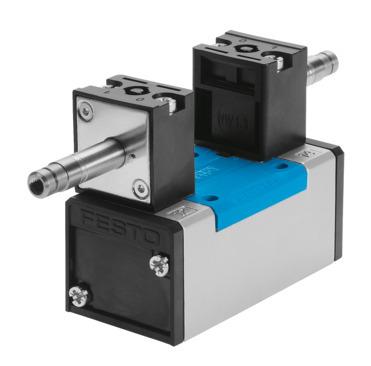

Reference imageConfirm configuration by manufacturer part number.
Festo
159715
Air solenoid valve JMN1DH-5/2-D-3-C
The Festo 159715 is a 5/2 bistable, dominant industrial component featuring a piston gate valve structural design and soft sealing principle, operating within a pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar). Conforming to ISO 5599-1 with an ISO code of 369, this electrical-actuated unit provides a nominal width of 14.5 mm, a normal nominal flow rate of 4500 l/min, and an IP65 degree of protection. Featuring a 65 mm width, G1/2 pneumatic working port on a size 3 sub-base, and an exhaust air function with flow control, the device includes both detenting and non-detenting manual override options. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 159715
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 159715.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2, bistable, dominant
- Actuation type
- Electrical
- Width
- 65 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4500 l/min
- Pneumatic working port
- Sub-base, size 3 as per ISO 5599-1 | G1/2
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - Recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65
- Nominal width
- 14.5 mm
- Width dimension
- 71 mm
- Exhaust air function
- With ow control option
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory | Non-detenting
- ISO code
- 369
- Type of control
- Pilot-controlled
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Overlap
- Suitability for vacuum
- no
- Changeover time
- 24 ms
- Switching time changeover (dominant)
- 21 ms
- Max. positive test pulse with 0 signal
- 3700 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 159715. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
