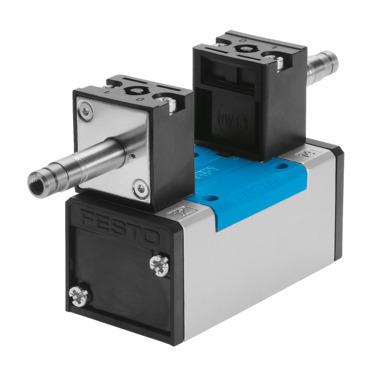

Reference imageConfirm configuration by manufacturer part number.
Festo
159719
Air solenoid valve JMN1DH-5/2-D-2-S-C
The Festo 159719 is a 5/2-way dominant, bistable industrial component featuring a piloted piston gate valve design with soft sealing and an 11.5 mm nominal width. This electrical unit operates across a pressure range of -0.09 MPa to 1.6 MPa, delivers a normal nominal flow rate of 2300 l/min, and mounts via an ISO 5599-1 size 2 sub-base with G3/8 pneumatic working ports. Built to IP65 protection standards with adjustable exhaust air function, it includes both non-detenting and accessory-detenting manual override options alongside DNV-TAA000032X maritime classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 159719
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 159719.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, dominant, bistable
- Actuation type
- Electrical
- Width
- 54 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2300 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-1 | G3/8
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X
- Degree of protection
- IP65
- Nominal width
- 11.5 mm
- Width dimension
- 56 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory | Non-detenting
- ISO code
- 269
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.2 MPa...1 MPa
- Pilot pressure
- 2 bar...10 bar
- Suitability for vacuum
- Yes
- Changeover time
- 24 ms
- Switching time changeover (dominant)
- 21 ms
- Max. positive test pulse with 0 signal
- 3700 µs
