Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
160234

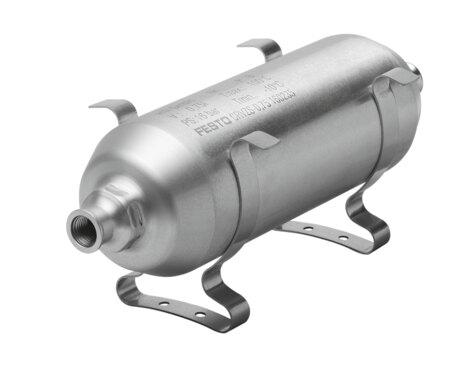

Air reservoir CRVZS-0.4
The Festo 160234 is an industrial component featuring a 0.4 l high-alloy stainless steel air reservoir with fixing clips and a G1/4 pneumatic connection, supporting an operating pressure range of -0.95 bar to 16 bar and medium temperatures from -10 °C to 100 °C. This RoHS-compliant part conforms to the AD 2000 standard with TÜV certification, offers CRC 3 high corrosion stress resistance, and operates with compressed air as per ISO 8573-1:2010 [-:-:-] or nitrogen in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 160234
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 160234.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Volume
- 0.4 l
- Mounting position
- Any
- Conforms to standard
- AD 2000
- Operating pressure
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.78 psi...232 psi
- Certication
- TÜV
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Nitrogen
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- For use in the food industry
- See supplementary material information
- Temperature of medium
- -10 °C...100 °C
- Ambient temperature
- -10 °C...100 °C
- Max. tightening torque for connecting thread
- 23 Nm
- Product weight
- 543 g
- Type of mounting
- Fixing clips
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Air reservoir material
- high-alloy stainless steel
- Fixing clips material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 160234. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
