Festo
160235

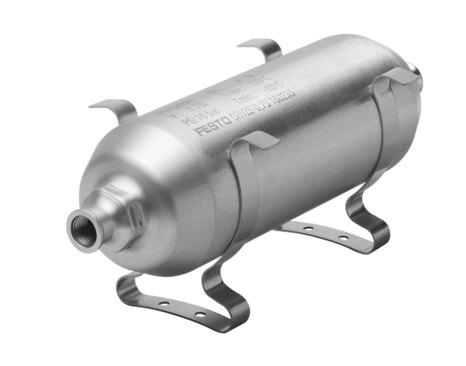

Air reservoir CRVZS-0.75
The Festo 160235 is an industrial air reservoir with a volume of 0.75 l, constructed from high-alloy stainless steel and featuring fixing clips for mounting in any position. It operates within a pressure range of -0.095 MPa to 1.6 MPa and a medium and ambient temperature range of -10 °C to 100 °C, utilizing compressed air as per ISO 8573-1:2010 [-:-:-] or nitrogen. This component conforms to the AD 2000 standard, holds TÜV certification, and provides a corrosion resistance class of CRC 3 with VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 160235
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 160235.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Volume
- 0.75 l
- Mounting position
- Any
- Conforms to standard
- AD 2000
- Operating pressure
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.78 psi...232 psi
- Certication
- TÜV
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Nitrogen
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- For use in the food industry
- See supplementary material information
- Temperature of medium
- -10 °C...100 °C
- Ambient temperature
- -10 °C...100 °C
- Max. tightening torque for connecting thread
- 23 Nm
- Product weight
- 736 g
- Type of mounting
- Fixing clips
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Air reservoir material
- high-alloy stainless steel
- Fixing clips material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 160235. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
