160237

Name: Festo 160237 Air reservoir CRVZS-10
Brand: Festo

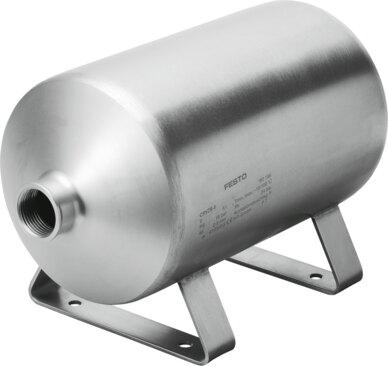

Air reservoir CRVZS-10

The Festo part number 160237 is a 10 l industrial component featuring a condensate drain down mounting position and a maximum operating pressure range of -0.095 MPa to 1.6 MPa. Designed with a CRC 3 corrosion resistance class and supporting a medium and ambient temperature range of -10 °C to 100 °C, this unit operates with compressed air as per ISO 8573-1:2010 [-:-:-] or nitrogen. It conforms to the AD 2000 standard, holds TÜV certification, and carries CE and UKCA markings as per pressure equipment directives. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 160237
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 160237.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Volume: 10 l
Mounting position: Condensate drain down
Conforms to standard: AD 2000
Operating pressure: -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.78 psi...232 psi
Certication: TÜV
CE marking (see declaration of conformity): as per EU pressure equipment directive
UKCA marking (see declaration of conformity): according to UK regulations for pressure equipment
Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-] | Nitrogen
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
For use in the food industry: See supplementary material information
Temperature of medium: -10 °C...100 °C
Ambient temperature: -10 °C...100 °C
Max. tightening torque for connecting thread: 130 Nm
Max. tightening torque for condensate drain: 27 Nm
Product weight: 6459 g
Type of mounting: With through-hole
Condensate drain connection: G3/8
Pneumatic connection: G1
Note on materials: RoHS compliant
Air reservoir material: high-alloy stainless steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 160237. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
