Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

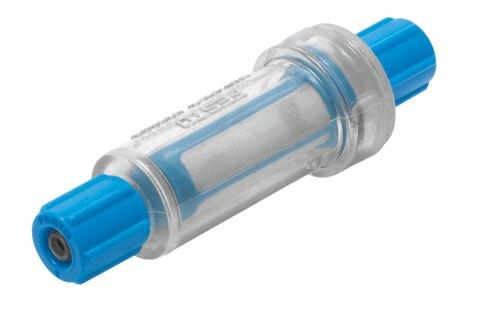

Reference imageConfirm configuration by manufacturer part number.
Festo
160239
Vacuum filter VAF-PK-6
The Festo part number 160239 is an industrial component featuring a nominal width of 4.6 mm, an in-line installation design, and a pneumatic connection using PK-6 with a POM union nut. It operates within a pressure range of -0.95 bar to 0 bar exclusively in open vacuum systems, delivering a flow rate of 210 l/min at a negative pressure of -0.75 bar. Built with a PA housing, PA and fabric compressed air filter with a 50 µm filtration grade, and an ejector pulse suitability of 8 bar, this 10 g unit functions in ambient temperatures from 0 µC to 40 µC while meeting VDMA24364-B1/B2-L LABS conformity and RoHS material directives. This component is suitable for the production of Li-ion batteries with reduced Cu/Zn/Ni values (F1a) using compressed air as per ISO 8573-1:2010 [7:-:-] in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 160239
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 160239.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4.6 mm
- Mounting position
- Any
- Grade of ltration
- 50 µm
- Operating pressure
- -0.95 bar...0 bar
- Information on operating pressure
- Only for use in open vacuum systems
- Flow rate at negative pressure = -0.75 bar
- 210 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- 0 °C...40 °C
- Product weight
- 10 g
- Type of mounting
- In-line installation
- Pneumatic connection
- PK-6 with union nut
- Material of union nut
- POM
- Note on materials
- RoHS compliant
- Compressed air lter material
- Fabric | PA
- Housing material
- PA
- Ejector pulse suitability
- 8 bar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 160239. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
