Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

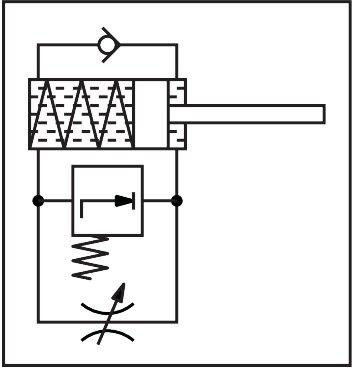

Reference imageConfirm configuration by manufacturer part number.
Festo
160274
Shock absorber YSR-32-60-C
The Festo 160274 is a single-acting industrial component with a size 32, a 60 mm stroke, and pushing mode of operation featuring self-adjusting cushioning across a 60 mm cushioning length. Weighing 1220 g with a moderate corrosion resistance class (CRC 2) and VDMA24364-B2-L LABS conformity, it operates within an ambient temperature range of -10 °C to 80 °C in any mounting position without position sensing. This unit handles a maximum stop force of 6000 N, a maximum impact velocity of 3 m/s, and a maximum energy absorption of 380 J per stroke with 220000 J per hour. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 160274
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 160274.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Stroke
- 60 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 3 m/s
- Reset time at room temperature
- 0.5 s
- Reset time at min. ambient temperature
- 1 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...80 °C
- Cushioning length
- 60 mm
- Max. stop force
- 6000 N
- Max. energy absorption per stroke
- 380 J
- Max. energy absorption per hour
- 220000 J
- Max. residual energy
- 2 J
- Resetting force
- 20 N
- Min. insertion force
- 160 N
- Product weight
- 1220 g
- Load range
- 400 kg
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Steel, galvanized
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 160274. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
