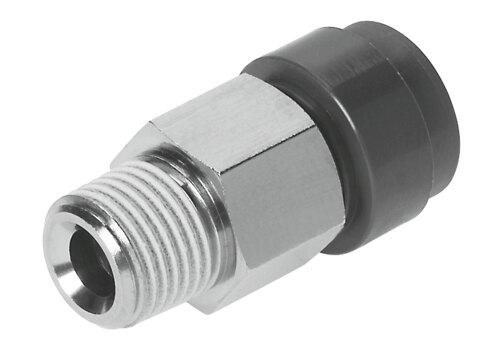

Reference imageConfirm configuration by manufacturer part number.
Festo
160500
Push-in fitting QS-V0-1/8-6
The Festo part number 160500 is a standard straight industrial component featuring a push-pull structural design with an R1/8 external thread and a connection for 6 mm outside diameter pneumatic tubing. This component operates across a pressure range of -0.095 MPa to 1 MPa and handles compressed air or ice-free liquid water up to 50 °C with lubricated operation capability. Constructed with a nickel-plated brass screwed plug and UL94 V-0 housing and releasing ring materials, the unit weighs 8.7 g and mounts via an external hexagon SW12. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 160500
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 160500.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 5 mm
- Material re test
- UL94 V-0 (housing) | UL94 V-0 (releasing ring)
- Type of seal on screwed plug
- Coating
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 8.7 g
- Type of mounting
- External hexagon SW12
- Pneumatic connection 1
- External thread R1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Black
- Material of screwed plug
- Brass, nickel-plated
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- PBT
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel | Brass
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 160500. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
