Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

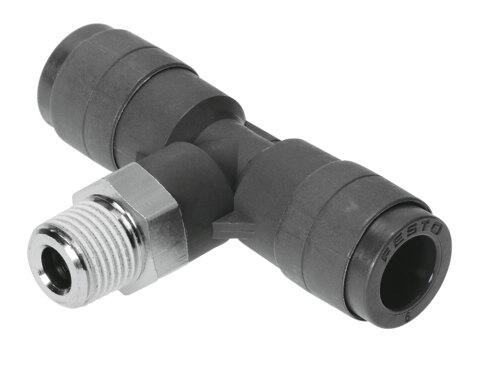

Reference imageConfirm configuration by manufacturer part number.
Festo
160530
Push-in T-fitting QST-V0-3/8-12
The Festo 160530 is a standard T-shaped industrial component featuring a VDMA24364-B1/B2-L LABS conformity and a CRC 2 moderate corrosion stress rating. It connects an external thread R3/8 on connection 1 to a 12 mm outside diameter pneumatic tubing on connection 2 using a push-pull structural design, nickel-plated brass screwed plug with a coated seal, and a UL94 V-0 housing and black releasing ring. This part operates at pressures from -0.95 bar to 10 bar for compressed air or water up to max. 0.6 MPa at 50 °C, supports lubricated operation, and mounts via an external hexagon SW17 across an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 160530
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 160530.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 10 mm
- Material re test
- UL94 V-0 (housing) | UL94 V-0 (releasing ring)
- Type of seal on screwed plug
- Coating
- Design
- T-shape
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 53 g
- Type of mounting
- External hexagon SW17
- Pneumatic connection 1
- External thread R3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Black
- Material of screwed plug
- Brass, nickel-plated
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- PBT
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel | Brass
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 160530. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
