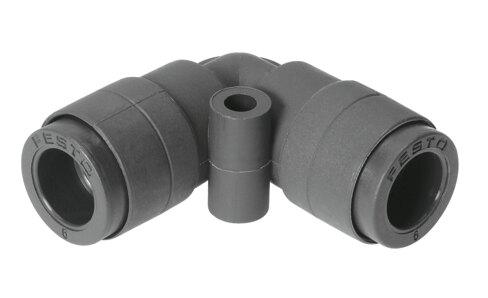

Reference imageConfirm configuration by manufacturer part number.
Festo
160540
Push-in L-connector QSL-V0-6
The Festo 160540 is a standard, L-shaped industrial component featuring a push-pull structural design with a 5 mm nominal width and dual 6 mm pneumatic tubing outside diameter connections. Constructed with a PBT housing and releasing ring both meeting UL94 V-0 fire test standards, this part operates within a pressure range of -0.95 bar to 10 bar and supports compressed air or liquid water media. It includes a black releasing ring, weighs 8.6 g, offers CRC 2 moderate corrosion resistance, and is supplied in a pack size of 10. Submit part number 160540, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 160540
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 160540.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 5 mm
- Material re test
- UL94 V-0 (housing) | UL94 V-0 (releasing ring)
- Design
- L-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 8.6 g
- Pneumatic connection 1
- For pneumatic tubing outside diameter 6 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Black
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- PBT
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel | Brass
