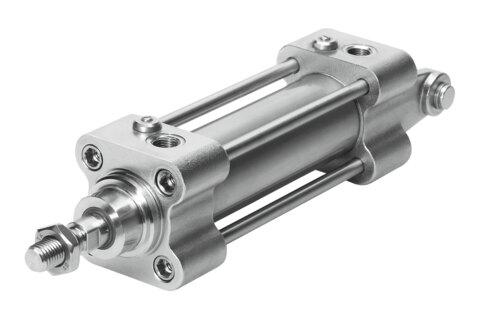

Reference imageConfirm configuration by manufacturer part number.
Festo
160892
ISO cylinder CRDNGS-50- -PPV-A
The Festo 160892 is a double-acting industrial component featuring a 50 mm piston diameter, an M16x1.5 piston rod thread, and an adjustable pneumatic cushioning system at both ends with a 23 mm cushioning length. Built to ISO 15552 standards, this unit supports a stroke range from 10 mm to 2000 mm, operates at pressures between 0.06 MPa and 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], and delivers a theoretical retracting force of 990 N at 6 bar. Designed with a corrosion resistance class of 4 for particularly high corrosion stress, the assembly accommodates position sensing via proximity switches and functions within an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 160892
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 160892.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...2000 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M16x1.5
- Based on norm
- ISO 15552
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Swivel clevis | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- End cap with swiveling rod eye
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...80 °C
- Cushioning length
- 23 mm
- Theoretical force at 6 bar, retracting
- 990 N
- Theoretical force at 6 bar, advancing
- 1178 N
- Moving mass at 0 mm stroke
- 485 g
- Additional moving mass per 10 mm stroke
- 25 g
- Basic weight with 0 mm stroke
- 2419 g
- Additional weight per 10 mm stroke
- 56 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
