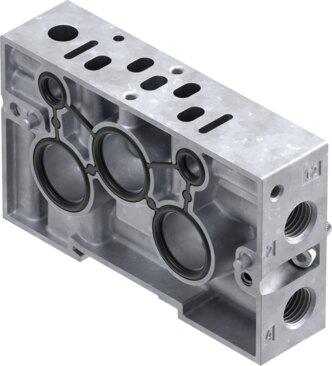

Reference imageConfirm configuration by manufacturer part number.
Festo
161103
Manifold sub-base NAW-1/4-01-VDMA-VL
The Festo part number 161103 is an industrial component featuring a width of 26 mm and a product weight of 225 g, built upon the ISO 15407-1 norm with a die-cast aluminum sub-base. It operates using compressed air as per ISO 8573-1:2010 [7:4:4], allowing operation with oil lubrication which is required for further use, and conforms to VDMA24364-B1/B2-L LABS (PWIS). Connections include M5 pilot air ports 12 and 14 alongside G1/4 pneumatic connections 2 and 4. Request a quote for this specific part number by submitting your required quantity and application details.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161103
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161103.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 26 mm
- Based on norm
- ISO 15407-1
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 225 g
- Pilot air port 12
- M5
- Pilot air port 14
- M5
- Pneumatic connection 2
- G1/4
- Pneumatic connection 4
- G1/4
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161103. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
