Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

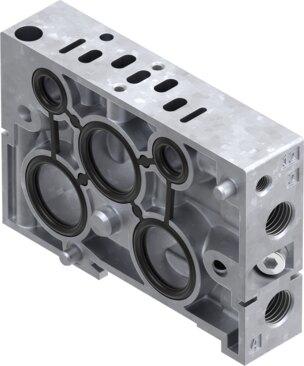

Reference imageConfirm configuration by manufacturer part number.
Festo
161110
Manifold sub-base NAW-1/8-02-VDMA
The Festo 161110 is a die-cast aluminum industrial component measuring 18 mm in width and weighing 130 g, built in accordance with the ISO 15407-1 norm. This unit utilizes compressed air as an operating medium conforming to ISO 8573-1:2010 [7:4:4], permits operation with oil lubrication which is required for further use, and maintains VDMA24364-B1/B2-L LABS conformity. Fluid lines interface through G1/8 pneumatic connections designated as connection 2 and connection 4. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161110
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161110.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 18 mm
- Based on norm
- ISO 15407-1
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 130 g
- Pneumatic connection 2
- G1/8
- Pneumatic connection 4
- G1/8
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161110. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
