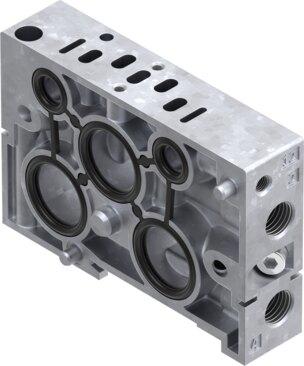

Reference imageConfirm configuration by manufacturer part number.
Festo
161111
Manifold sub-base NAW-1/8-02-VDMA-VL
The Festo 161111 is an industrial component featuring a width of 18 mm, a die-cast aluminum sub-base, and a product weight of 130 g, built according to ISO 15407-1 standards. It operates using compressed air conforming to ISO 8573-1:2010 [7:4:4] with VDMA24364-B1/B2-L LABS conformity and permits oil lubrication for continued operation. Pneumatic connections 2 and 4 utilize G1/8 ports, while pilot air ports 12 and 14 feature M5 connections. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161111
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161111.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 18 mm
- Based on norm
- ISO 15407-1
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 130 g
- Pilot air port 12
- M5
- Pilot air port 14
- M5
- Pneumatic connection 2
- G1/8
- Pneumatic connection 4
- G1/8
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161111. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
