Festo
161115

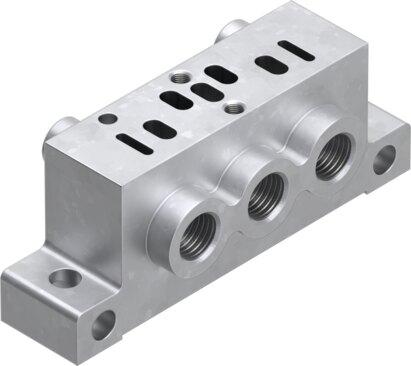

Individual subbase NAS-1/8-02-VDMA
The Festo 161115 is an industrial component sub-base constructed from die-cast aluminum with a product weight of 67 g and through-hole mounting. It is based on the ISO 15407-1 norm, featuring G1/8 pneumatic connections for ports 1, 2, 3, 4, and 5, along with M5 pilot air ports 12/14. Operating medium requirements follow ISO 8573-1:2010 [7:4:4] compressed air, allowing for oil lubrication which is required for further use, while maintaining VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161115
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161115.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- ISO 15407-1
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 67 g
- Type of mounting
- With through-hole
- Pilot air port 12/14
- M5
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Pneumatic connection 3
- G1/8
- Pneumatic connection 4
- G1/8
- Pneumatic connection 5
- G1/8
- Material of sub-base
- Die-cast aluminum
