Festo
161126

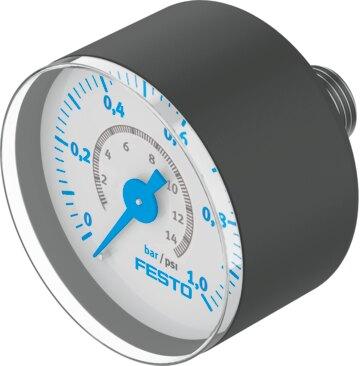

Precision pressure gauge MAP-40-1-1/8-EN
The Festo 161126 is a Bourdon tube pressure gauge featuring a nominal size of 40 and a display and operating pressure range of 0 bar to 1 bar, 0 MPa to 0.1 MPa, or 0 psi to 14.5 psi. Conforming to EN 837-1, this in-line installation component includes a centered rear R1/8 pneumatic connection, brass media-contacting materials and screwed plug, and an IP43 degree of protection for neutral liquids and inert gases within a -20 °C to 60 °C temperature range. It offers a measurement accuracy class of 1.6, an intermittent load factor of 0.66, VDMA24364-B1/B2-L LABS conformity, RoHS compliance, and ATEX explosion protection for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161126
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161126.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...1 bar | 0 psi...14.5 psi
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 40
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...0.1 MPa | 0 bar...1 bar | 0 psi...14.5 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 1.6
- Degree of protection
- IP43
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- R1/8
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- PBT
