Festo
161129

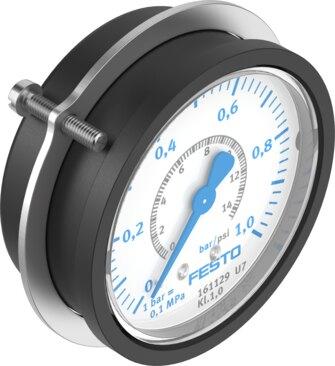

Flanged precision pressure gauge FMAP-63-1-1/4-EN
The Festo 161129 is a Bourdon tube pressure gauge featuring a nominal size of 63 and a display range of 0 bar to 1 bar or 0 psi to 14.5 psi, conforming to EN 837-1 standards. Designed for front panel mounting with a rear-centered G1/4 pneumatic connection, this instrument operates with inert gases and neutral liquids within a temperature range of -20 °C to 60 °C. It provides measurement accuracy class 1 performance and includes ATEX certification for use in Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161129
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161129.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...1 bar | 0 psi...14.5 psi
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 63
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- Front panel mounting
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...0.1 MPa | 0 bar...1 bar | 0 psi...14.5 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 1
- Degree of protection
- IP43
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- G1/4
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- ABS
