Festo
161130

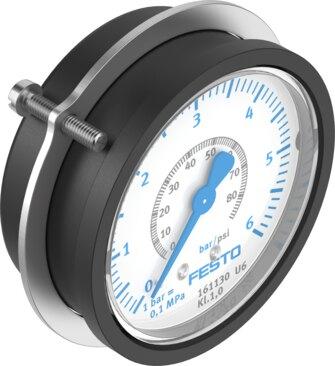

Flanged precision pressure gauge FMAP-63-6-1/4-EN
The Festo 161130 is a Bourdon tube pressure gauge featuring a nominal size of 63 and a display and operating pressure range of 0 bar to 6 bar, or 1 psi to 87 psi, conforming to EN 837-1. Designed for front panel mounting with a rear-centered G1/4 pneumatic connection, this component operates with inert gases and neutral liquids within a temperature range of -20 °C to 60 °C, excluding acetylene and oxygen. It offers an IP43 degree of protection, class 1 measurement accuracy, and incorporates brass media-contacting materials and screwed plugs compliant with RoHS and VDMA24364-B1/B2-L LABS conformity. This ATEX-certified device is rated for Zones 1, 2, 21, and 22, and requires adherence to the provided certificate information for explosion prevention and protection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161130
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161130.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...6 bar | 1 psi...87 psi
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 63
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- Front panel mounting
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 1
- Degree of protection
- IP43
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- G1/4
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- ABS
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161130. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
