Festo
161228

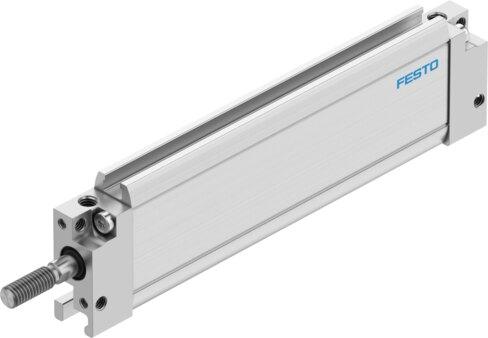

Flat cylinder DZF-12-80-A-P-A
The Festo part number 161228 is a double-acting industrial component featuring an 80 mm stroke, a 12 mm equivalent piston diameter, and an M6 piston rod thread with an oval piston providing a maximum rotation protection torque of 0.1 Nm and a +/- 2.5 degree rotation angle. Operating within a pressure range of 1.6 bar to 10 bar using ISO 8573-1:2010 [7:4:4] compressed air, this unit incorporates elastic cushioning rings at both ends and allows for position sensing via proximity switch. It achieves a corrosion resistance class of 2 with moderate stress tolerance and delivers a theoretical retracting force of 51 N at 6 bar across an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161228
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161228.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 80 mm
- Piston diameter
- 12 mm | Equivalent diameter
- Piston rod thread
- M6
- Max. angle of rotation of the piston rod +/-
- 2.5 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.16 MPa...1 MPa | 1.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.09 J
- Max. torque for protection against rotation
- 0.1 Nm
- Theoretical force at 6 bar, retracting
- 51 N
- Theoretical force at 6 bar, advancing
- 68 N
- Moving mass at 0 mm stroke
- 12 g
- Additional moving mass per 10 mm stroke
- 2 g
- Additional weight per 10 mm stroke
- 9 g
- Basic weight with 0 mm stroke
- 96 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- M5
- Cover material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161228. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
