Festo
161230

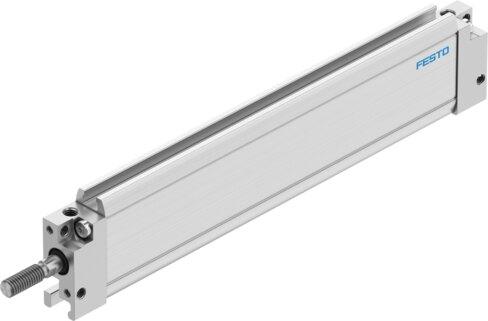

Flat cylinder DZF-12-125-A-P-A
The Festo 161230 is a double-acting industrial component featuring a 12 mm equivalent piston diameter, a 125 mm stroke, and an M6 piston rod thread with an oval piston providing an anti-torsion guide. It operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a 0.16 MPa to 1 MPa pressure range and a temperature range of -20 °C to 80 °C, utilizing elastic cushioning rings at both ends and position sensing via a proximity switch. Featuring a corrosion resistance class of 2 and a retracting theoretical force of 51 N at 6 bar, this unit supports oil lubrication and accommodates any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161230
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161230.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 125 mm
- Piston diameter
- 12 mm | Equivalent diameter
- Piston rod thread
- M6
- Max. angle of rotation of the piston rod +/-
- 2.5 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.16 MPa...1 MPa | 1.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.09 J
- Max. torque for protection against rotation
- 0.1 Nm
- Theoretical force at 6 bar, retracting
- 51 N
- Theoretical force at 6 bar, advancing
- 68 N
- Moving mass at 0 mm stroke
- 12 g
- Additional moving mass per 10 mm stroke
- 2 g
- Additional weight per 10 mm stroke
- 9 g
- Basic weight with 0 mm stroke
- 96 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- M5
- Cover material
- Wrought aluminum alloy
