Festo
161235

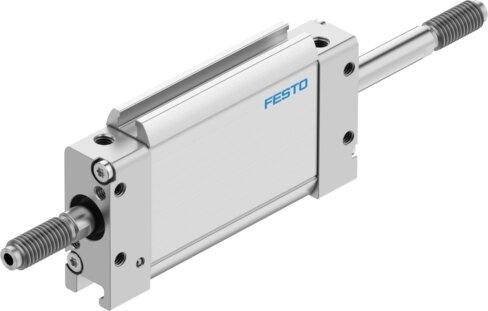

Flat cylinder DZF-18- -A-P-A-S20
The Festo part number 161235 is a double-acting industrial component featuring an 18 mm equivalent piston diameter with an M8 piston rod thread and an adjustable stroke ranging from 1 mm to 200 mm. Built with an oval piston for torsion protection up to 0.2 Nm and elastic cushioning rings at both ends, this unit operates between 1 bar and 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. It accommodates any mounting position, utilizes proximity switches for position sensing, and delivers a theoretical retracting force of 123 N at 6 bar while withstanding ambient temperatures from -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161235
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161235.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...200 mm
- Piston diameter
- 18 mm | Equivalent diameter
- Piston rod thread
- M8
- Max. angle of rotation of the piston rod +/-
- 1.2 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Through, hollow piston rod
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.1 J
- Max. torque for protection against rotation
- 0.2 Nm
- Theoretical force at 6 bar, retracting
- 123 N
- Theoretical force at 6 bar, advancing
- 123 N
- Moving mass at 0 mm stroke
- 24 g
- Additional moving mass per 10 mm stroke
- 4 g
- Additional weight per 10 mm stroke
- 13 g
- Basic weight with 0 mm stroke
- 107 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- M5
- Cover material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161235. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
