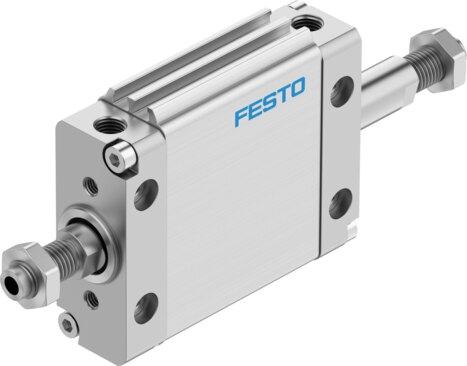

Name: Festo 161276 Flat cylinder DZF-40- -A-P-A-S20
Brand: Festo

Flat cylinder DZF-40- -A-P-A-S20

The Festo part number 161276 is a double-acting industrial component featuring a 40 mm equivalent piston diameter, an M12x1.25 piston rod thread, and an adjustable stroke ranging from 1 mm to 320 mm. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 1 bar to 10 bar, this structural design incorporates an oval piston for torsion protection, elastic cushioning rings at both ends, and position sensing via proximity switch. It delivers a theoretical retracting force of 633 N at 6 bar while withstanding ambient temperatures from -20 °C to 80 °C and moderate corrosion stress with CRC 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 161276
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 161276.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 1 mm...320 mm
Piston diameter: 40 mm | Equivalent diameter
Piston rod thread: M12x1.25
Max. angle of rotation of the piston rod +/-: 0.6 deg
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Piston | Piston rod
Position sensing: Via proximity switch
Variants: Through, hollow piston rod
Protection against torsion/guide: Oval piston
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...80 °C
Impact energy in the end positions: 0.52 J
Max. torque for protection against rotation: 1 Nm
Theoretical force at 6 bar, retracting: 633 N
Theoretical force at 6 bar, advancing: 633 N
Moving mass at 0 mm stroke: 120 g
Additional moving mass per 10 mm stroke: 16 g
Additional weight per 10 mm stroke: 40 g
Basic weight with 0 mm stroke: 480 g
Type of mounting: Alternatively: | With internal thread | With accessories
Pneumatic connection: G1/8
Cover material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 161276. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
