Festo
161314

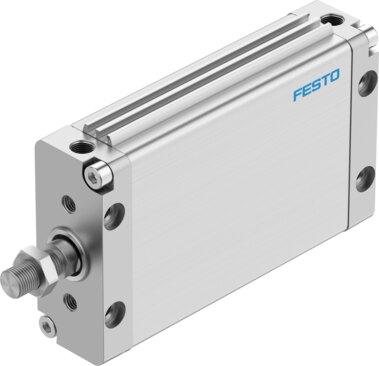

Flat cylinder DZF-63-125-A-P-A
The Festo 161314 is a double-acting industrial component featuring a 63 mm equivalent piston diameter, a 125 mm stroke, and an M16x1.5 piston rod thread with a single-end rod design. It operates within a 1 bar to 10 bar pressure range using compressed air meeting ISO 8573-1:2010 [7:4:4] standards, incorporating an oval piston for torsion protection up to 1.5 Nm and elastic cushioning at both ends. The unit includes position sensing via proximity switch, offers a 1682 N theoretical retracting force at 6 bar, and withstands ambient temperatures from -20 °C to 80 °C with a CRC 2 moderate corrosion resistance rating. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161314
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161314.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 125 mm
- Piston diameter
- 63 mm | Equivalent diameter
- Piston rod thread
- M16x1.5
- Max. angle of rotation of the piston rod +/-
- 0.4 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.7 J
- Max. torque for protection against rotation
- 1.5 Nm
- Theoretical force at 6 bar, retracting
- 1682 N
- Theoretical force at 6 bar, advancing
- 1870 N
- Moving mass at 0 mm stroke
- 337 g
- Additional moving mass per 10 mm stroke
- 25 g
- Additional weight per 10 mm stroke
- 91 g
- Basic weight with 0 mm stroke
- 1379 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G1/4
- Cover material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161314. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
