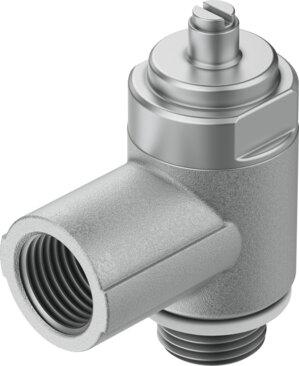

Name: Festo 161403 One-way flow control valve CRGRLA-M5-B
Brand: Festo

One-way flow control valve CRGRLA-M5-B

The Festo part number 161403 is a manual one-way flow control industrial component featuring M5 pneumatic connections on both ports and a slotted screw adjusting element for screw-in mounting. This unit operates across a pressure range of 0.02 MPa to 1 MPa (0.2 bar to 10 bar / 2.9 psi to 145 psi) and an ambient temperature range of -20 °C to 80 °C, delivering a standard nominal flow rate of 95 l/min in the flow control direction and 77 l/min to 95 l/min in the non-return direction. Certified for ATEX Zone 1, 2, 21, and 22 explosive protection environments, it utilizes compressed air matching ISO 8573-1:2010 [7:4:4] standards and is suitable for lithium-ion battery production with reduced copper, zinc, and nickel values. Submit the exact part number, quantity, and application requirements to receive a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 161403
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 161403.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: One-way ow control function
Pneumatic connection 1: M5
Pneumatic connection 2: M5
Actuation type: Manual
Adjusting element: Slotted screw
Type of mounting: Screw-in
Standard nominal ow rate in ow control direction: 95 l/min
Standard nominal ow rate in non-return direction: 77 l/min...95 l/min
Operating pressure: 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
Ambient temperature: -20 °C...80 °C
Maritime classication: See certicate
Explosion prevention and protection: Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Mounting position: Any
Rotatability: 360 deg/continuous swiveling not permissible
Standard ow rate in ow control direction 6 -> 0 bar: 165 l/min
Standard ow rate in non-return direction at 6 -> 0 bar: 140 l/min...150 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Storage temperature: -10 °C...40 °C
