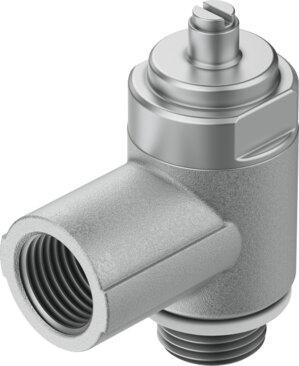

Name: Festo 161404 One-way flow control valve CRGRLA-1/8-B
Brand: Festo

One-way flow control valve CRGRLA-1/8-B

The Festo 161404 is a one-way flow control industrial component featuring G1/8 pneumatic connections on both ports and a manual actuation type with a slotted screw adjusting element for screw-in mounting. This valve operates within a pressure range of 0.03 MPa to 1 MPa (0.3 bar to 10 bar / 4.35 psi to 145 psi) and an ambient temperature range of -20 °C to 80 °C, delivering a standard nominal flow rate of 340 l/min in the flow control direction and 260 l/min to 420 l/min in the non-return direction. It uses compressed air as per ISO 8573-1:2010 [7:4:4], permits oil lubrication operation, complies with VDMA24364-B2-L LABS conformity, and is suitable for the production of Li-ion batteries with reduced Cu/Zn/Ni values (F1a) with ATEX explosion prevention for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 161404
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 161404.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: One-way ow control function
Pneumatic connection 1: G1/8
Pneumatic connection 2: G1/8
Actuation type: Manual
Adjusting element: Slotted screw
Type of mounting: Screw-in
Standard nominal ow rate in ow control direction: 340 l/min
Standard nominal ow rate in non-return direction: 260 l/min...420 l/min
Operating pressure: 0.03 MPa...1 MPa | 0.3 bar...10 bar | 4.35 psi...145 psi
Ambient temperature: -20 °C...80 °C
Maritime classication: See certicate
Explosion prevention and protection: Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Mounting position: Any
Rotatability: 360 deg/continuous swiveling not permissible
Standard ow rate in ow control direction 6 -> 0 bar: 580 l/min
Standard ow rate in non-return direction at 6 -> 0 bar: 530 l/min...590 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Storage temperature: -10 °C...40 °C

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 161404. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
