Reference imageConfirm configuration by manufacturer part number.
Festo
161418

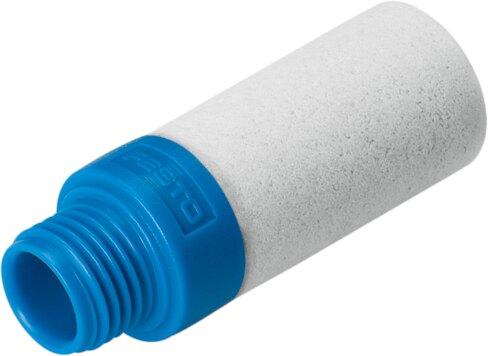

Pneumatic muffler UC-M7
The Festo 161418 industrial component features an M7 pneumatic connection and operates within a pressure range of 0 MPa to 1 MPa (0 bar to 10 bar), delivering a flow rate of 800 l/min with respect to atmosphere. Compatible with compressed air conforming to ISO 8573-1:2010 [7:-:-], this RoHS-compliant part supports lubricated operation and functions within an ambient temperature range of -10 °C to 70 °C. Constructed with PA-reinforced screwed plugs and protective grounding cushioning insert material, the unit weighs 1.2 g, has VDMA24364-B1/B2-L LABS conformity, produces a noise level of 58 dB(A), and supports any mounting position with a pack size of 1. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161418
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161418.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pack size
- 1
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 800 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 58 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 1.2 g
- Pneumatic connection
- M7
- Cushioning insert material
- Protective grounding
- Material of screwed plug
- PA-reinforced | Protective grounding
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161418. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
