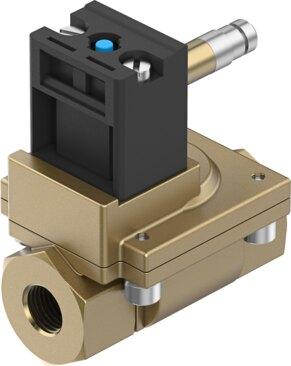

Reference imageConfirm configuration by manufacturer part number.
Festo
161724
Air solenoid valve MN1H-2-1/4-MS-NPT
The Festo 161724 is a 2/2-way closed monostable diaphragm valve featuring an electrical actuation type, piloted control, and a soft sealing principle with a 13 mm nominal width. This in-line installation component operates within a medium and ambient temperature range of -10 °C to 60 °C, utilizing filtered compressed air with a 200 µm filter mesh at medium pressures from 0.5 bar to 10 bar. Built with high-alloy stainless steel screws and VDMA24364-B1/B2-L LABS conformity, it supports any mounting position, non-reversible flow direction, and pneumatic spring reset. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161724
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161724.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Diaphragm valve
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 1/4 NPT
- Nominal width
- 13 mm
- Valve function
- 2/2-way, closed, monostable
- Manual override
- Detenting via accessory | Non-detenting
- Flow direction
- Non-reversible
- Medium
- Filtered compressed air, 200 µm lter mesh
- Exhaust air function
- Cannot be throttled
- Reset method
- Pneumatic spring
- Type of control
- Piloted
- Medium pressure
- 0.5 bar...10 bar
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Material of screws
- high-alloy stainless steel
- Material number of screw
- 1,4301
- Product weight
- 450 g
- Degree of protection
- IP65
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161724. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
