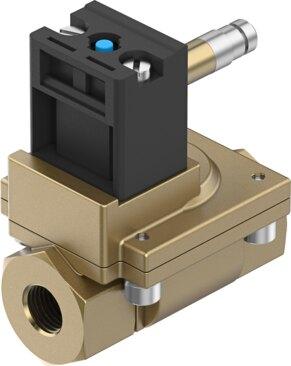

Reference imageConfirm configuration by manufacturer part number.
Festo
161725
Air solenoid valve MN1H-2-1/4-MS
This Festo 161725 industrial component is an electrical diaphragm valve featuring a 2/2-way, closed, monostable valve function and a 13 mm nominal width for in-line installation with G1/4 fitting connections. The piloted valve utilizes a soft sealing principle, a pneumatic spring reset method, and a non-reversible flow direction operable with filtered compressed air through a 200 µm filter mesh across a medium pressure range of 0.5 bar to 10 bar. It includes a Type A plug electrical connection conforming to DIN EN 175301-803, support for multiple AC and DC coil characteristic ratings, and dual manual override options for ambient and medium temperatures spanning -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161725
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161725.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Diaphragm valve
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- G1/4
- Electrical connection
- Type A | Plug | As per DIN EN 175301-803 | Rectangular design
- Nominal width
- 13 mm
- Valve function
- 2/2-way, closed, monostable
- Manual override
- Detenting via accessory | Non-detenting
- Flow direction
- Non-reversible
- Medium
- Filtered compressed air, 200 µm lter mesh
- Exhaust air function
- Cannot be throttled
- Coil characteristics
- 110 V AC: 50 Hz, initial power 5.0 VA, holding power 3.7 VA | 110 V AC: 60 Hz, initial power 5.0 VA, holding power 3.7 VA | 230 V AC: 50 Hz, initial power 5.0 VA, holding power 3.7 VA | 230 V AC: 60 Hz, initial power 5.0 VA, holding power 3.7 VA | 24 V DC: 2.5 W
- Reset method
- Pneumatic spring
- Type of control
- Piloted
- Medium pressure
- 0.5 bar...10 bar
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Normal nominal ow rate (normalized to DIN 1343)
- 2000 l/min
- On switching time
- 30 ms
- Switching time off
- 100 ms
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Housing material
- Brass
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161725. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
