Festo
161728

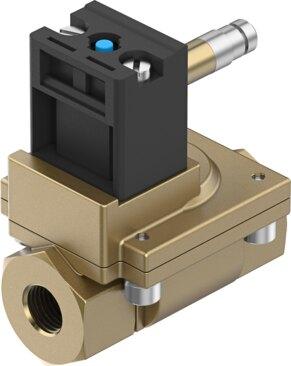

Air solenoid valve MN1H-2-1/2-MS
The Festo 161728 is an electrically actuated diaphragm valve featuring a 2/2-way, closed, monostable function with a soft sealing principle and a nominal width of 13 mm. Designed for in-line installation with a G1/2 fitting connection and a Type A plug electrical connection, it operates on filtered compressed air through a 0.5 bar to 10 bar medium pressure range across ambient and medium temperatures of -10 °C to 60 °C. This piloted component utilizes a pneumatic spring reset method, non-reversible flow direction, and supports both AC and DC coil characteristics with options for detenting or non-detenting manual override. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161728
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161728.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Diaphragm valve
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- G1/2
- Electrical connection
- Type A | Plug | As per DIN EN 175301-803 | Rectangular design
- Nominal width
- 13 mm
- Valve function
- 2/2-way, closed, monostable
- Manual override
- Detenting via accessory | Non-detenting
- Flow direction
- Non-reversible
- Medium
- Filtered compressed air, 200 µm lter mesh
- Exhaust air function
- Cannot be throttled
- Coil characteristics
- 110 V AC: 50 Hz, initial power 5.0 VA, holding power 3.7 VA | 110 V AC: 60 Hz, initial power 5.0 VA, holding power 3.7 VA | 230 V AC: 50 Hz, initial power 5.0 VA, holding power 3.7 VA | 230 V AC: 60 Hz, initial power 5.0 VA, holding power 3.7 VA | 24 V DC: 2.5 W
- Reset method
- Pneumatic spring
- Type of control
- Piloted
- Medium pressure
- 0.5 bar...10 bar
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Normal nominal ow rate (normalized to DIN 1343)
- 3100 l/min
- On switching time
- 30 ms
- Switching time off
- 100 ms
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Housing material
- Brass
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161728. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
