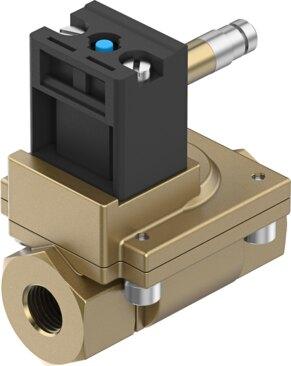

Reference imageConfirm configuration by manufacturer part number.
Festo
161735
Air solenoid valve MN1H-2-1 1/2-MS-NPT
The Festo 161735 is a piloted 2/2-way closed monostable diaphragm valve featuring a soft sealing principle and a 40 mm nominal width configured for in-line installation with a 1 1/2 NPT fitting connection in any mounting position. It operates with a non-reversible flow direction under a medium pressure range of 0.5 bar to 10 bar using filtered compressed air with a 200 µm filter mesh, while supporting oil-lubricated operation and a medium and ambient temperature range of -10 °C to 60 °C. Constructed with high-alloy stainless steel screws of material number 1.4301, this component utilizes a pneumatic spring reset method, non-detenting manual override with accessory detenting, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161735
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161735.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Diaphragm valve
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 1 1/2 NPT
- Nominal width
- 40 mm
- Valve function
- 2/2-way, closed, monostable
- Manual override
- Detenting via accessory | Non-detenting
- Flow direction
- Non-reversible
- Medium
- Filtered compressed air, 200 µm lter mesh
- Exhaust air function
- Cannot be throttled
- Reset method
- Pneumatic spring
- Type of control
- Piloted
- Medium pressure
- 0.5 bar...10 bar
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Material of screws
- high-alloy stainless steel
- Material number of screw
- 1,4301
- Product weight
- 2600 g
- Degree of protection
- IP65
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161735. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
