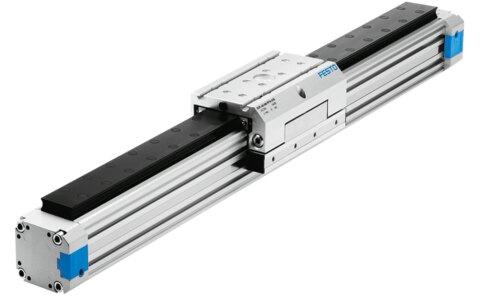

Reference imageConfirm configuration by manufacturer part number.
Festo
161794
Linear actuator DGPL-40- -PPV-A-KF-B
The Festo 161794 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke range from 10 mm to 3000 mm, and a recirculating ball bearing guide utilizing a positive locking driver principle. It operates within a pressure range of 1.5 bar to 8 bar using compressed air as per ISO 8573-1:2010 [7:-:-], delivering a theoretical force of 754 N at 6 bar for both advancing and retracting strokes. Equipped with adjustable pneumatic cushioning at both ends and a 30 mm cushioning length, the unit supports an ambient temperature range of -10 °C to 60 °C with a moving mass of 1700 g at 0 mm stroke plus 97 g per 10 mm stroke. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161794
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161794.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...3000 mm
- Piston diameter
- 40 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends | Pneumatic shock absorber, hard characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Cushioning length
- 30 mm
- Theoretical force at 6 bar, retracting
- 754 N
- Theoretical force at 6 bar, advancing
- 754 N
- Moving mass
- 1700 g
- Moving mass at 0 mm stroke
- 1700 g
- Additional moving mass per 10 mm stroke
- 97 g
- Basic weight with 0 mm stroke
- 4480 g
- Alternative connections
- See product drawing
- Pneumatic connection
- G1/4
- Cover material
- Cast aluminum | Coated
- Seals material
- NBR | TPE-U(PU)
- Housing material
- Aluminum | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161794. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
