Festo
161796

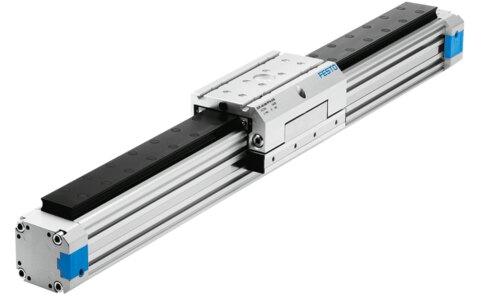

Linear actuator DGPL-63- -PPV-A-KF-B
Engineered by Festo, the part number 161796 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke range from 10 mm to 3000 mm, and a recirculating ball bearing guide. Operating on compressed air within a pressure range of 0.15 MPa to 0.8 MPa, this unit delivers a theoretical force of 1870 N in both retracting and advancing directions at 6 bar. It incorporates pneumatic cushioning at both ends with a 30 mm cushioning length, position sensing via a proximity switch, and a positive locking driver principle. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161796
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161796.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...3000 mm
- Piston diameter
- 63 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends | Pneumatic shock absorber, hard characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Cushioning length
- 30 mm
- Theoretical force at 6 bar, retracting
- 1870 N
- Theoretical force at 6 bar, advancing
- 1870 N
- Moving mass
- 4990 g
- Moving mass at 0 mm stroke
- 4990 g
- Additional moving mass per 10 mm stroke
- 236 g
- Basic weight with 0 mm stroke
- 15370 g
- Alternative connections
- See product drawing
- Pneumatic connection
- G3/8
- Cover material
- Cast aluminum | Coated
- Seals material
- NBR | TPE-U(PU)
- Housing material
- Aluminum | Anodized
