Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

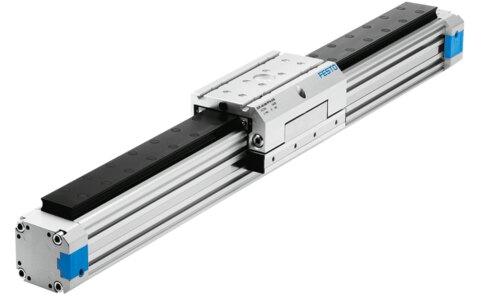

Reference imageConfirm configuration by manufacturer part number.
Festo
161797
Linear actuator DGPL-80- -PPV-A-KF-B
The Festo part number 161797 is a double-acting industrial component featuring an 80 mm piston diameter, an adjustable stroke range from 10 mm to 3000 mm, and a positive locking driver principle with a recirculating ball bearing guide. Operating at pressures between 0.15 MPa and 0.8 MPa, this unit utilizes compressed air per ISO 8573-1:2010 [7:-:-] and delivers a theoretical force of 3016 N in both advancing and retracting directions at 6 bar. Position sensing is accomplished via proximity switch, while motion is managed through adjustable pneumatic cushioning at both ends and a hard characteristic curve pneumatic shock absorber with an 83 mm cushioning length. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161797
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161797.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...3000 mm
- Piston diameter
- 80 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends | Pneumatic shock absorber, hard characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Cushioning length
- 83 mm
- Theoretical force at 6 bar, retracting
- 3016 N
- Theoretical force at 6 bar, advancing
- 3016 N
- Moving mass
- 12500 g
- Moving mass at 0 mm stroke
- 12500 g
- Additional moving mass per 10 mm stroke
- 270 g
- Basic weight with 0 mm stroke
- 28700 g
- Alternative connections
- See product drawing
- Pneumatic connection
- G1/2
- Cover material
- Cast aluminum | Coated
- Seals material
- NBR | TPE-U(PU)
- Housing material
- Aluminum | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161797. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
