Festo
161844

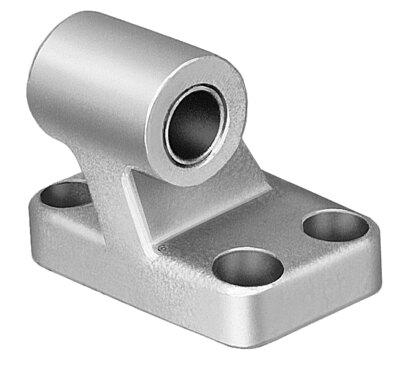

Clevis foot CRLNG-80
The Festo part number 161844 is an industrial component featuring a size 80 specification based on ISO 15552, ISO 6431, VDMA 24562, NF E49 003.1, and UNI 10290 norms, with a product weight of 562 g and RoHS compliant materials. Designed with a polymer bearing and electropolished high-alloy steel mounting material, it supports any mounting position, an ambient temperature range of -40 °C to 80 °C, and a maximum load capacity of 6 kN. This unit offers a corrosion resistance class of 4 for particularly high corrosion stress, VDMA24364-B2-L LABS conformity, and suitability for the production of Li-ion batteries with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161844
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161844.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Mounting position
- Any
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -40 °C...80 °C
- Max. load capacity
- 6 kN
- Product weight
- 562 g
- Note on materials
- RoHS compliant
- Mounting material
- Electropolished | High-alloy steel
- Material of bearing
- Polymer
