Festo
161845

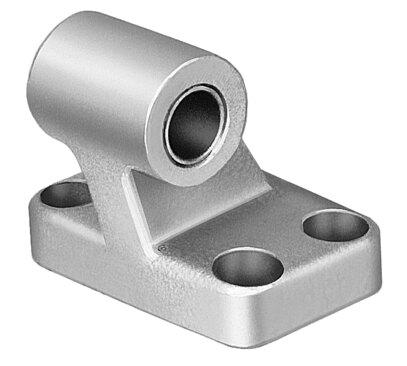

Clevis foot CRLNG-100
The Festo part number 161845 is an industrial component featuring a size 100 configuration based on the ISO 15552 norm, with compatibility across any mounting position. Constructed with electropolished high-alloy steel mounting material, a polymer bearing, and RoHS-compliant materials, this component achieves a corrosion resistance class of 4 for particularly high corrosion stress and a VDMA24364-B2-L LABS conformity. It operates within an ambient temperature range of -40 °C to 80 °C, supports a maximum load capacity of 9 kN, weighs 915 g, and is suitable for battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161845
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161845.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Mounting position
- Any
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -40 °C...80 °C
- Max. load capacity
- 9 kN
- Product weight
- 915 g
- Note on materials
- RoHS compliant
- Mounting material
- Electropolished | High-alloy steel
- Material of bearing
- Polymer
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161845. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
