Festo
161878

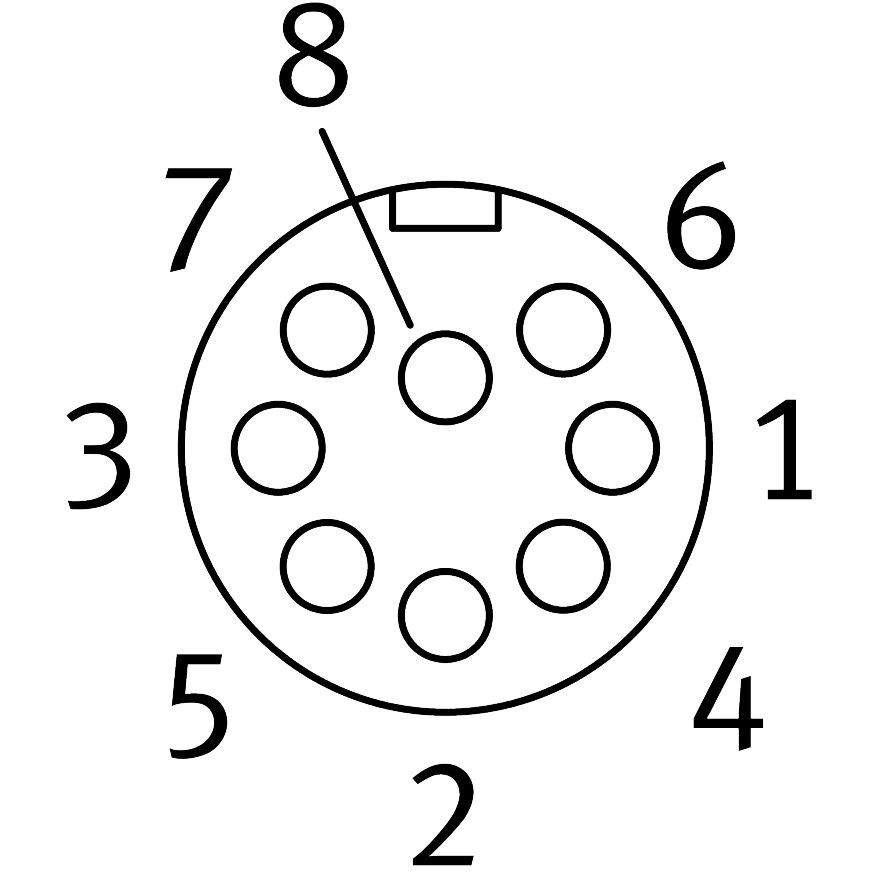

Plug socket with cable KMPPE-B-5
This Festo industrial component, part number 161878, is a shielded cable assembly weighing 459 g with an angled round M16x0.75 socket featuring 8 occupied pins on the field device side and an open-end cable with 8 occupied pins on the control side. It operates within a 0 V to 30 V DC range, delivers a 5 A current rating at 40° C, provides 0.6 kV surge resistance, and maintains a contact durability of 500 mating cycles using a screw-type lock mounting. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161878
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161878.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- With accessories
- Contact durability
- 500
- Product weight
- 459 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology
- M16x0.75 as per EN 61076-2-106
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 8
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 8
- Electrical connection 2, occupied pins/wires
- 8
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 5 A
- Surge resistance
- 0.6 kV
- Shield
- Yes
- Cable length
- 5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Cable diameter
- 6.8 mm
- Cable design
- 8 x 0.25 mm²
- Nominal conductor cross section
- 0.25 mm²
- Wire ends
- Cut off bluntly
- Degree of protection
- IP67
- Note on degree of protection
- In mounted state
- Ambient temperature
- -30 °C...80 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 161878. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
