Festo
161879
Plug socket with cable KMPPE-B-2,5
The Festo part number 161879 is an industrial component featuring an angled round M16x0.75 socket on the field device side with a screw-type lock and 8 occupied pins, paired with an open-ended cable on the control side. This shielded assembly operates within a DC voltage range of 0 V to 30 V, supports a current rating of 5 A at 40° C, possesses a surge resistance of 0.6 kV, and offers a contact durability of 500 cycles at a product weight of 243 g. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 161879
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 161879.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- With accessories
- Contact durability
- 500
- Product weight
- 243 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology
- M16x0.75 as per EN 61076-2-106

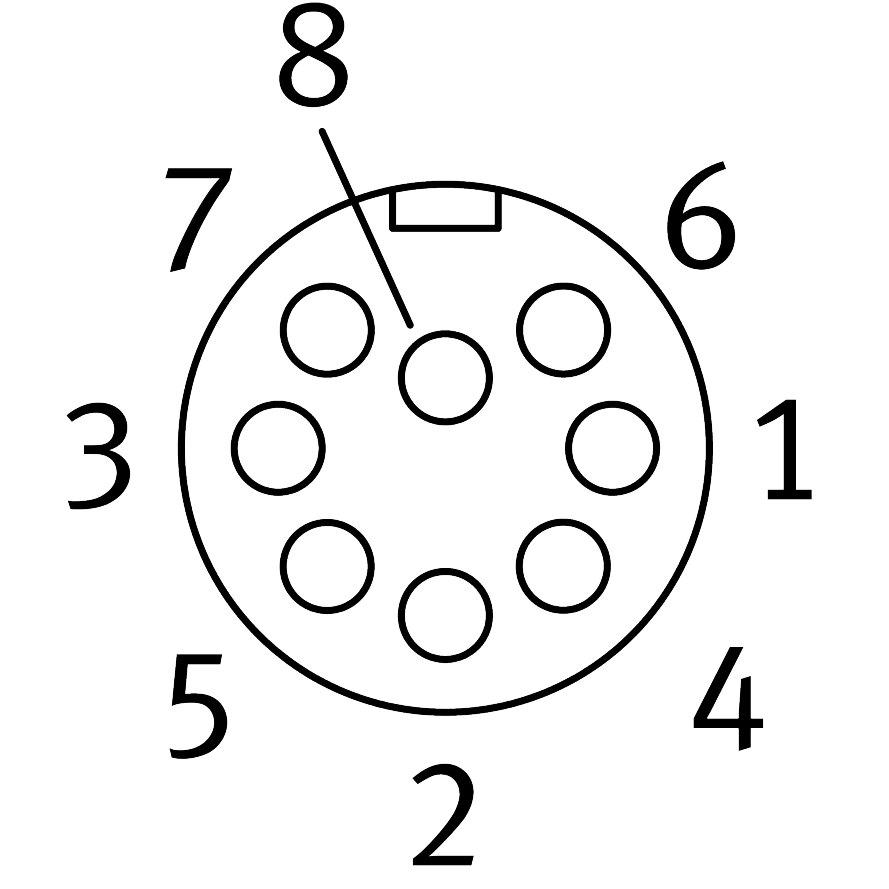

- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 8
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 8
- Electrical connection 2, occupied pins/wires
- 8
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 5 A
- Surge resistance
- 0.6 kV
- Shield
- Yes
- Cable length
- 2.5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Cable diameter
- 6.8 mm
- Cable design
- 8 x 0.25 mm²
- Nominal conductor cross section
- 0.25 mm²
- Wire ends
- Cut off bluntly
- Degree of protection
- IP67
- Note on degree of protection
- In mounted state
- Ambient temperature
- -30 °C...80 °C
