Festo
162027

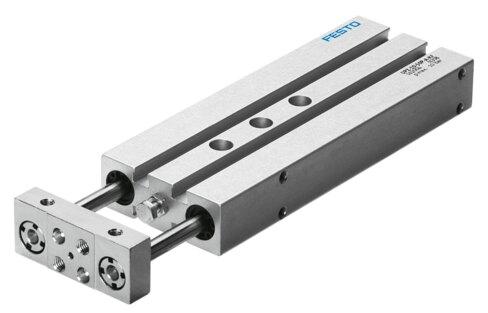

Twin cylinder DPZ-16-25-P-A-KF
The Festo 162027 is a double-acting industrial drive unit featuring a 16 mm piston diameter, a 25 mm stroke, and a recirculating ball bearing guide with a yoke operating mode. It operates on compressed air within a pressure range of 1 bar to 10 bar, delivering a theoretical force of 180 N retracting and 242 N advancing at 6 bar. This component incorporates elastic cushioning rings at both ends with an impact energy rating of 0.15 Nm, an adjustable end position range of 10 mm, and position sensing via proximity switch across an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162027
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162027.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 25 mm
- Adjustable end position range/length
- 10 mm
- Piston diameter
- 16 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.15 Nm
- Theoretical force at 6 bar, retracting
- 180 N
- Theoretical force at 6 bar, advancing
- 242 N
- Product weight
- 435 g
- Alternative connections
- See product drawing
- Pneumatic connection
- M5
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy
- Piston rod material
- Case-hardened steel
