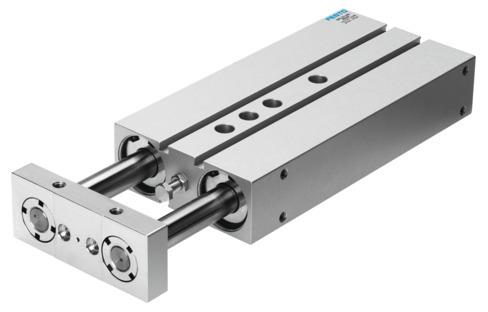

Reference imageConfirm configuration by manufacturer part number.
Festo
162132
Twin cylinder DPZ-32-25-P-A-KF
The Festo 162132 is a double-acting industrial drive unit featuring a 32 mm piston diameter, a 25 mm stroke, and a recirculating ball bearing guide with a 10 mm adjustable end position range. It operates within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], delivering theoretical forces of 966 N advancing and 724 N retracting at 6 bar. This component utilizes elastic cushioning rings at both ends, accommodates any mounting position, and provides position sensing via proximity switch across an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162132
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162132.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 25 mm
- Adjustable end position range/length
- 10 mm
- Piston diameter
- 32 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.5 Nm
- Theoretical force at 6 bar, retracting
- 724 N
- Theoretical force at 6 bar, advancing
- 966 N
- Product weight
- 1408 g
- Alternative connections
- See product drawing
- Pneumatic connection
- G1/8
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy
- Piston rod material
- Case-hardened steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 162132. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
