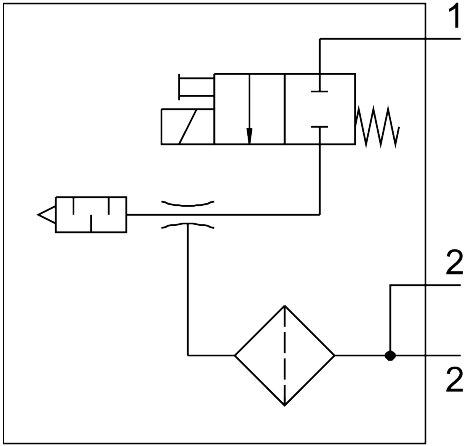

Reference imageConfirm configuration by manufacturer part number.
Festo
162504
Vacuum generator VADM-200
The Festo 162504 is an industrial component featuring a 2 mm Laval nozzle nominal width, a 22 mm width dimension, a closed muffler construction type, and an any-position mounting capability with high vacuum ejector characteristics. Equipped with an integrated electric on-off valve, a closed valve function, a 40 µm filtration grade, and a non-detenting manual override, it operates within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) and a DC operating voltage range of 21.6 V to 26.4 V at a 100% duty cycle. This c UL us-recognized unit delivers a maximum vacuum of 85%, an air supply time of 0.29 s at its 0.6 MPa (6 bar, 87 psi) nominal operating pressure, and is built with a moderate corrosion resistance class (CRC 2) and VDMA24364-B1/B2-L LABS conformity for compressed air per ISO 8573-1:2010 [7:4:4] without oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162504
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162504.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 2 mm
- Width dimension
- 22 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Electric on-off valve | Filter
- Valve function
- Closed
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Max. vacuum
- 85 %
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Air supply time at nominal operating pressure
- 0.29 s
- DC operating voltage range
- 21.6 V...26.4 V
- Duty cycle
- 100%
- Certication
- c UL us - recognized (OL)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...60 °C
- Degree of protection
- IP65
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 320 g
- Electrical connection
- Plug
- Type of mounting
- Alternatively: | With through-hole
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 162504. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
