Name: Festo 162507 Vacuum generator VADMI-70
Brand: Festo

Vacuum generator VADMI-70

The Festo part number 162507 is an industrial component featuring a 0.7 mm nominal width Laval nozzle, a 15 mm width dimension, a closed muffler construction type, and any mounting position. It delivers high vacuum ejector characteristics with a 40 µm grade of filtration, non-detenting manual override, and integrated functions including an electric ejector pulse valve, flow control valve, electric on-off valve, filter, and check valve, alongside a closed valve function. Operating within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar, 21.75 psi to 116 psi) and a maximum vacuum of 85%, the unit requires a nominal operating pressure of 0.6 MPa (6 bar, 87 psi) for an air supply time of 0.59 s with ejector pulse, utilizing a DC operating voltage range of 21.6 V to 26.4 V at a 100% duty cycle with c UL us - recognized (OL) certification. The operating medium is compressed air per ISO 8573-1:2010 [7:4:4] with oil lubrication not possible, a corrosion resistance class of CRC 2 for moderate corrosion stress, and LABS conformity according to VDMA24364-B1/B2-L. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 162507
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 162507.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width of Laval nozzle: 0.7 mm
Width dimension: 15 mm
Muﬄer construction type: Closed
Mounting position: Any
Ejector characteristics: High vacuum
Grade of ltration: 40 µm
Manual override: Non-detenting

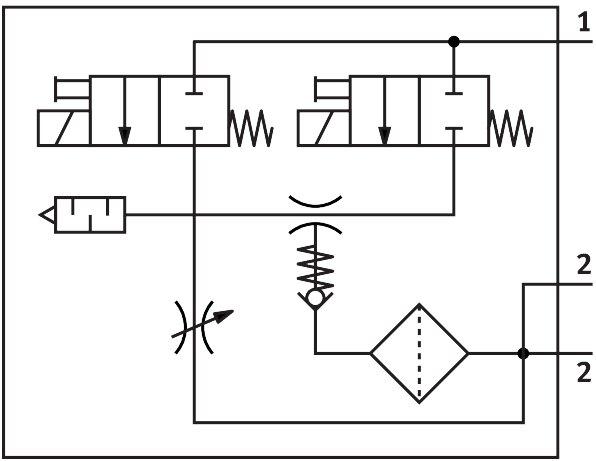

Integrated function: Ejector pulse valve, electric | Flow control valve | Electric on-oﬀ valve | Filter | Check valve
Valve function: Closed
Operating pressure: 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
Max. vacuum: 85 %
Nominal operating pressure: 0.6 MPa | 6 bar | 87 psi
Air supply time at nominal operating pressure with ejector pulse: 0.59 s
DC operating voltage range: 21.6 V...26.4 V
Duty cycle: 100%
Certication: c UL us - recognized (OL)
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication not possible
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: 0 °C...60 °C
Degree of protection: IP65
Ambient temperature: 0 °C...60 °C
Product weight: 170 g
Electrical connection: Plug

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 162507. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
