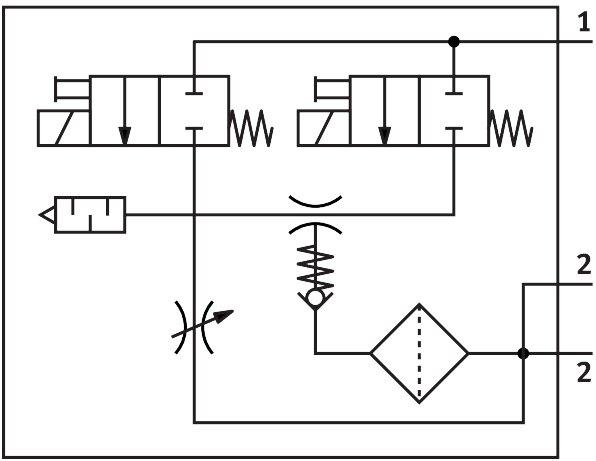

Reference imageConfirm configuration by manufacturer part number.
Festo
162508
Vacuum generator VADMI-95
The Festo part number 162508 is an industrial component featuring a 0.95 mm Laval nozzle, an 18 mm width dimension, a closed muffler construction type, and any mounting position with high vacuum ejector characteristics. It incorporates a non-detenting manual override, a 40 µm grade of filtration, and integrated functions including an electric ejector pulse valve, flow control valve, electric on-off valve, filter, and check valve with a closed valve function. Operating within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) at a nominal operating pressure of 0.6 MPa (6 bar, 87 psi), it delivers a max vacuum of 85% and an air supply time of 2.04 s at nominal operating pressure with an ejector pulse. This c UL us-recognized (OL) component operates on a 21.6 V to 26.4 V DC operating voltage range with a 100% duty cycle using compressed air as per ISO 8573-1:2010 [7:4:4] without oil lubrication, maintaining a moderate corrosion stress rating (CRC 2) and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162508
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162508.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.95 mm
- Width dimension
- 18 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Filter | Check valve
- Valve function
- Closed
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Max. vacuum
- 85 %
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Air supply time at nominal operating pressure with ejector pulse
- 2.04 s
- DC operating voltage range
- 21.6 V...26.4 V
- Duty cycle
- 100%
- Certication
- c UL us - recognized (OL)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...60 °C
- Degree of protection
- IP65
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 240 g
- Electrical connection
- Plug
